Pedlock® CPLU Series Non Metallic Enclosure Pedestal

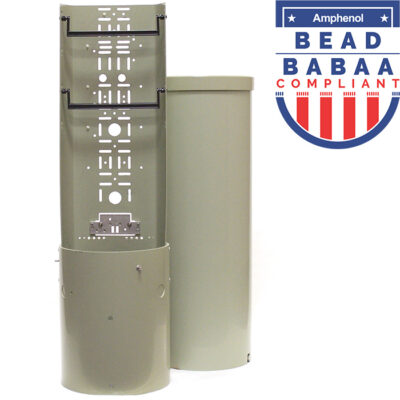

PEDLOCK® CPLU Series Pedestals

PEDLOCK® Universal Non-Metallic Buried Plant Pedestals

Broadband Equity Access & Deployment Program (BEAD) and Build America, Buy America Act (BABAA) compliant*

Amphenol Charles Industries’ Pedlock CPLU Series Pedestals feature a revolutionary design ideally suited to protecting conduit-fed splice points in the outside plant. The dome, base and backboard feature non-metallic construction for long life, added safety, and superior performance. Every aspect of the pedestal’s design has been carefully crafted to provide installers and technicians with the industry’s most versatile and easy to use pedestal, while maintaining the Pedlock’s legacy of field-proven environmental protection.

CPLU Series pedestals include a unique corrugated channel base with increased capacity resulting from
its square design. The base is split in two halves for easy installation around installed plant conduit and cable bundles. Internally, a universal backboard accepts all types of terminal blocks, and has ladder bars spaced along the backplane for simplified cable management. The dome features a self-lock and positiv
alignment guides for quick and secure opening and closing.

*Looking for BABAA-compliant products for your BEAD-funded projects? Talk to our sales representative today and learn more about our BABAA-compliant product portfolios.

Features and Benefits

Flexibility

Split base design allows for easy and speedy access to cable/wire entrance area. Four 1 ¼” rubber grommets just below the ground-line provide easy entry for service wires without disturbing gravel or pedestal base fill. Stake
mounting holes on three of the base’s sides provide flexibility in placement of mounting stake.

Economic

Low total cost of ownership

Installation Mounting

Corrugated channel base eliminates the need for metallic mounting stakes in most soil conditions. The base’s square design increases capacity and easily accepts conduit bundles.

Technician Friendly Features

Universal backboard (U-backboard) is easily installed or removed from new rail mounting brackets without the use of tools. A new universal hole pattern accommodates all types of terminal blocks.

Material Specification

Non-metallic PVC construction won’t rust, corrode, chip or fade.

Environmental

Protects internal components from floods, fires, and wind-blown dust and debris

Conductor insulation is protected from high and low temperature extremes

Documents and Download

Documents

Industries

Telecom

Product Details

Ordering Information

CPLU 6 Pedestals (6")

CPLU 6

6” Pedestal, round base, Universal Backboards, service wire channel

CPLU 6-I

6” Pedestal, integral stake base, Universal Backboards, service wire channel

CPLU 6-R

6” Pedestal, rehab (split) base, Universal Backboards, service wire channel

CPLU 6-E

6” Pedestal, split square base, Universal Backboards, service wire channel

CPLU 8 Pedestals (8")

CPLU 8

8” Pedestal, round base, Universal Backboards, service wire channel

CPLU 8-I

8” Pedestal, integral stake base, Universal Backboards, service wire channel

CPLU 8-R

8” Pedestal, rehab (split) base, Universal Backboards, service wire channel

CPLU 8-E

8” Pedestal, split square base, Universal Backboards, service wire channel

CPLU10 Pedestals (10")

CPLU 10

10” Pedestal, round base, Universal Backboards, service wire channel

CPLU 10-I

10” Pedestal, integral stake base, Universal Backboards, service wire channel

CPLU 10-R

10” Pedestal, rehab (split) base, Universal Backboards, service wire channel

CPLU 10-E

10” Pedestal, split square base, Universal Backboards, service wire channel

Accessories

002271F

Standard 6” copper dome assembly, 6” X 26.5” (CPLU,CPLU-I,CPLU-R)

003151F

Standard 8” copper dome assembly, 8” X 26.5” (CPLU,CPLU-I,CPLU-R)

002295F

Standard 10” copper dome assembly, 10” X 26.5” (CPLU,CPLU-I,CPLU-R)

97-DOME206RPLKT

Standard 6” copper dome assembly (CPLU-E)

97-DOME208RPLKT

Standard 8” copper dome assembly (CPLU-E)

97-DOME21031RPL

Standard 10” copper dome assembly (CPLU-E)

80-001880-F

6” Split square base (CPLU-E)

80-001881-F

8” Split square base (CPLU-E)

80-001882-F

10” Split square base (CPLU-E)

97-500512-A

Ground Lug (pkg. 100)

97-PKOR06-A

6” Hi-Viz Kap (pkg. 50)

97-PKOR08-A

8” Hi-Viz Kap (pkg. 50)

97-PKOR10-A

10” Hi-Viz Kap (pkg. 25)

24-100946-F

Service wire channel kit, 2.5” X 12.5” (25 pieces)

18-900731-F

Rectangular drop channel plug kit (25 pieces)

010376-F

1.25” black rubber base grommet plug (25 pieces)

PHP10

10” base hole plug; PVC green (100 pieces)

PHP68

6” & 8” base hole plug; PVC green (100 pieces)

UMS30-STD

Metal mounting stake and hardware, 30” Length

UMS36-STD

Metal mounting stake and hardware, 36” Length

UMS42-STD

Metal mounting stake and hardware, 42” Length

UMB102A

Universal pole mounting bracket kit

Looking for BABAA compliant product for BEAD funded projects? Please CONTACT CHARLES for more information, including available options.
